te|box Kombitester

Compact In-Line PCB Testing

The te|box Kombitester from Baumann Automation is a compact platform for automated in-line PCB testing. Based on the modular te|box concept, the system combines several test methods such as ICT, flashing and functional testing (FCT) within a compact footprint.

A continuous conveyor links the individual test stations and enables high throughput. At the same time, large maintenance doors provide easy access and support short changeover times.

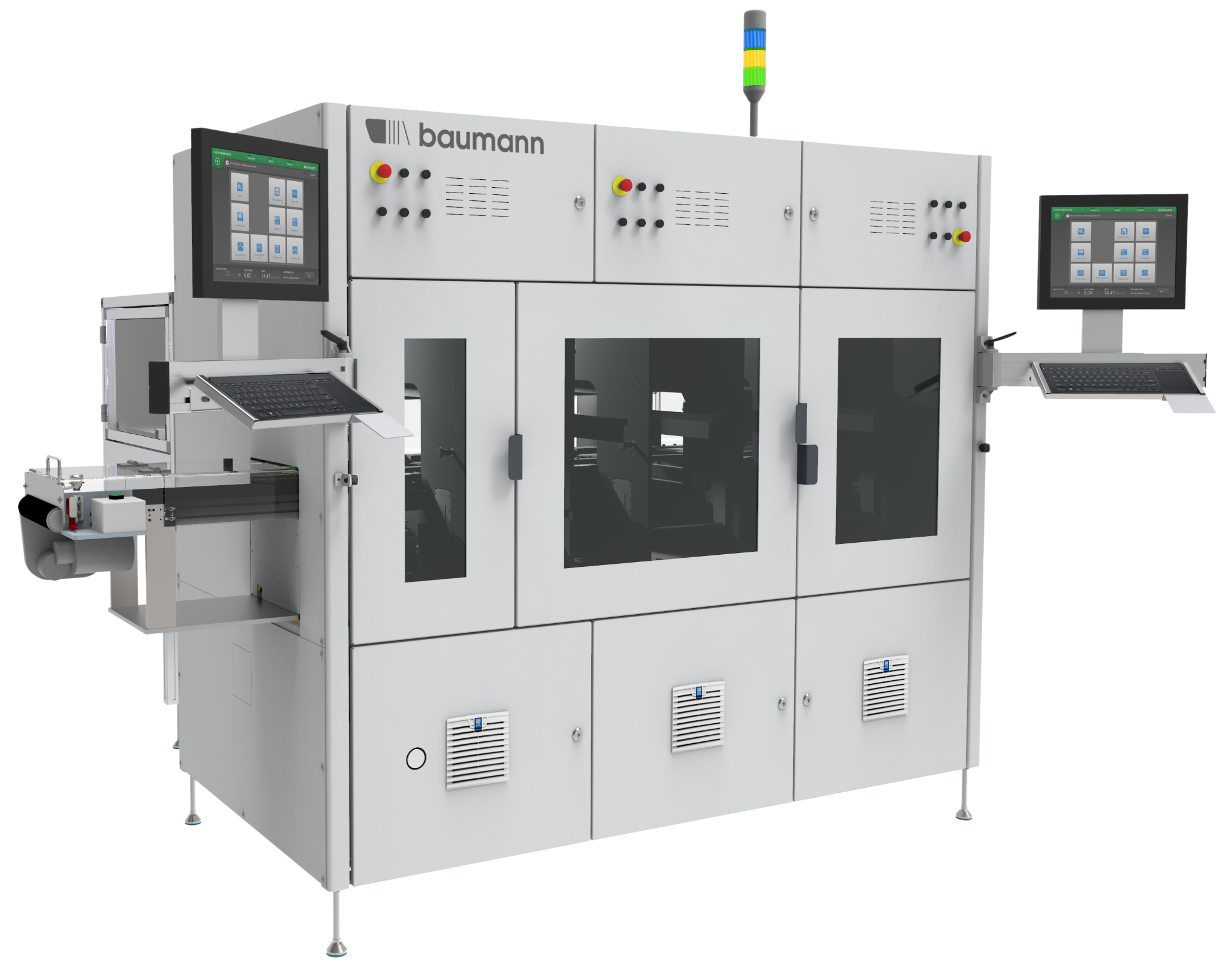

Baumann combi tester

Your benefits at a glance:

  • Combination of ICT, flashing and FCT in a single system
  • High throughput with a compact footprint
  • Continuous conveyor system
  • Mechanical or automatic width adjustment
  • Up to three C-contacting units
Download Flyer kombitester1,79 MB
Kombitester ICT Flash FCT

Basic version – compact and efficient

  • Compact footprint
  • Fewer mechanical components
  • One robot is sufficient where test times are comparable
  • Modular design allows expansion with additional Baumann systems
Kombitester ICT Flash FCT Buffer

Expansion with buffer system

  • Flexible expansion with additional buffer modules
  • Balances different process and test times
  • Increased system autonomy
  • Scalable according to production requirements
Kombitester ICT Flash FCT Buffer routbox

Expansion with rout|box

  • Expansion of the production line with the rout|box
  • Modular integration into existing system concepts
  • Additional handling and process steps can be added easily
Kombitester ICT Flash FCT Buffer routbox Assembley

Integration into the production line

  • Combination of testing, buffering and assembly processes
  • Expandable with additional Baumann modules
  • Continuous material flow throughout the production line
  • Scalable to meet future process requirements


Example of a production line:

1 te|box

2 rout|box

3 ro|box (assembly)

Options

  • Integrated fail part sorting
  • Conveyor belt with automatic width adjustment
  • Manual infeed for repair parts

PCB formats

  • PCB length: 42-300 mm
  • PCB width: 24-240 mm
  • Component clearance: +/- 20 mm
  • Max. PCB (panel) weight: 3 kg
  • Special sizes available upon request

Flexible in-line testing

The te|box Kombitester can be flexibly adapted to different printed circuit boards and production requirements. The control cabinet and test equipment are integrated directly into the system to save space. This makes the system particularly suitable for automated electronics production environments where multiple test processes can be efficiently linked within a single production flow.
