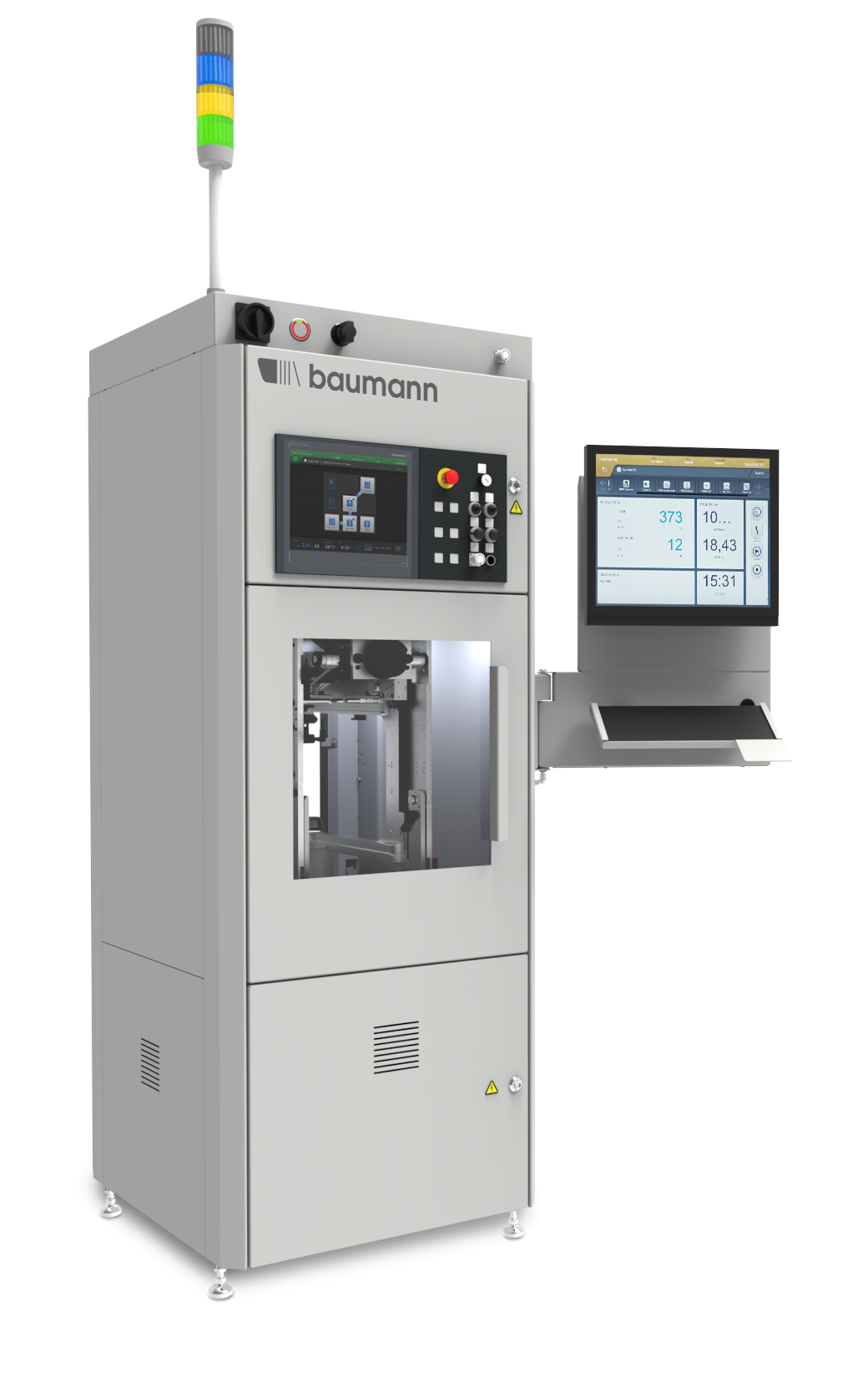

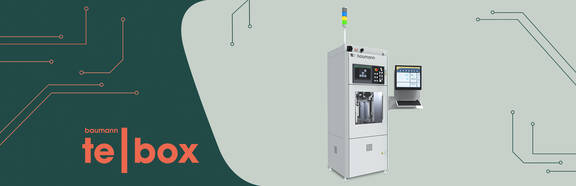

BAUMANN te|box
the platform for increased test system flexibility
The Baumann te|box is the standardised, flexible platform for test engineering applications. When used to test PCBs and control units, it reliably satisfies the demand for quality assurance and a zero defect strategy during production.
Product features:
Cell dimensions
• Model 1.1 525 mm x 525 mm
• Model 2.2 700 mm x 700 mm
• Model 2.4 700 mm x 1050 mm
• Model 4.4 1050 mm x 1050 mm
• Model 6.4 1400 mm x 1050 mm
• Model 8.4 1750 mm x 1050 mm
• Height: 1800 mm ± 50 mm
with adjustable feet
Test procedures
• ICT, Flash, FCT
• HFT (hot function test)
• Rotation
• Calibration
• Pin check
• Optical end test
• End of Line
• etc.

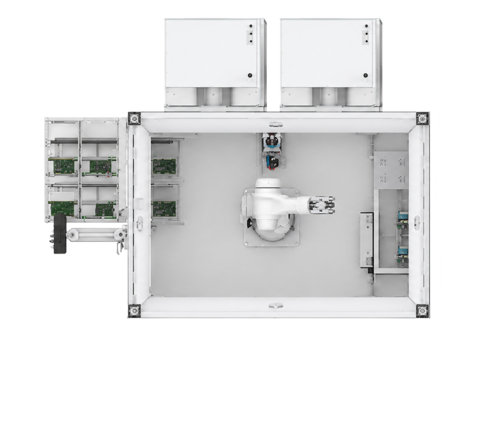

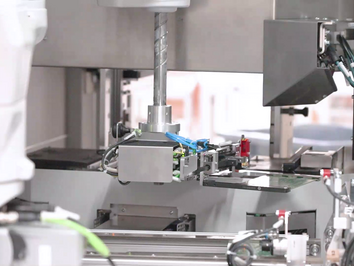

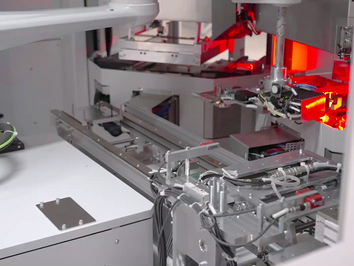

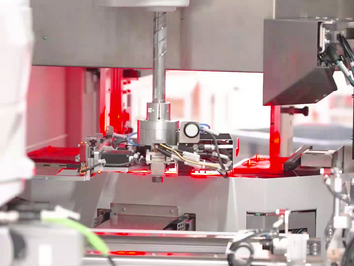

Loading module
• Manual loading via a drawer system,
rotary table or conveyor belt
• Linking via a conveyor belt
• Axis system loading
• Robot loading
• Loading modules can be retrofitted
Platform
• Welded steel base framel
• C contacting with pneumatic toggle
joint mechanism
• 19" rack with 11 high units for test
equipment under the contact
mechanism
PCB/Control unit
• PCB length 42 - 300 mm
• PCB width: 24 - 240 mm
• Component clearance: -20/+50 mm
• Max. component weight: 3 kg
• Special sizes available upon request
User interface (HMI)
• 5,7" TFT touch screen, multilingual
for operating and controlling all
the cell functions
• Interfaces - SMEMA, Profibus,
CAN, AS-I, TCP/IP
