BAUMANN feed|box
the perfect solution for your production operations

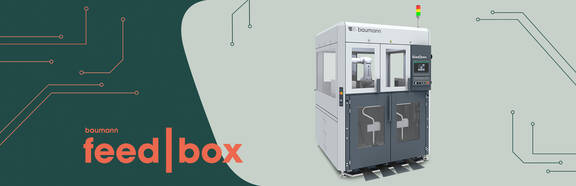

The Baumann feed|box is a flexible robot platform for loading and unloading machining centres. Parts can be loaded directly or indirectly into the tooling nest. The feed|box is suitable for stand-alone or inline operation and can be configured with either a robotic or gantry-style handling system.
Baumann feed|box
Product features:
Standard cell equipment
- Handling system 6-axis robot
- Load capacity ≤ 5 kg
- Dimensions:
- FB4 1600x1600x2100 mm
- FB6 1600x1800x2100 mm
- Pallet weight ≤ 60 kg
- Pallet size ≤ 400x600 mm
- Beckhoff control unit
- HMI with 10.4" touch panel, multilingual
- SPC, good/fail part sorting
- Profibus interface, TCP/IP, etc.
Process module variants
- Evacuating, cleaning
- Aligning, turning
- Joining, mounting
- Deburring, brushing
- Measuring (pre and post process)
- Classifying, labelling
- Testing (mechanical, camera system)
- Interconnecting
- Networking (host connection)
- PDA
Feed module variants
- Stacking module
- Belt conveyor system
- Drawer
- Lean system
Handling system variants
- Scara robot
- Gantry system, combination possible, Load capacity ≤ 20 kg
